pfSense Open NAT for Xbox (Double NAT)

·2 min read·BIGWONG Studio
Network

This shows how to make Xbox get Open NAT on pfSense in a double-NAT mobile broadband setup. It also applies to PlayStation and other devices that require open NAT.

If you're curious, see Easy NAT (Endpoint-Independent NAT mapping).

To get Open NAT you need two things:

  1. NAT mapping
  2. Open firewall ports

If the images are blurry, open them in a new tab.

Fix NAT mapping

By default, pfSense randomizes the source port, so each connection uses a different port.

  • Go to Firewall > NAT > Outbound
  • Find Outbound NAT Mode and select Hybrid Outbound NAT
  • Click Save

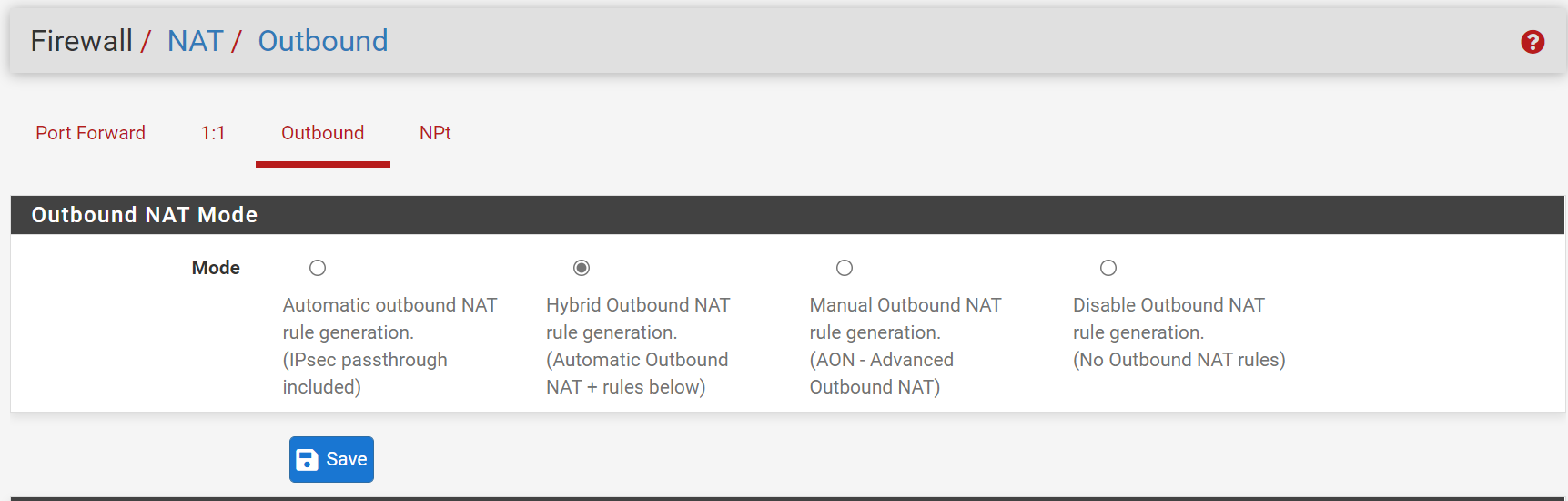

Outbound NAT Mode

  • Under Mappings, add a rule
  • Configure as shown below. Set Source to the Xbox LAN IP with mask 32. In Translation, check Static Port.

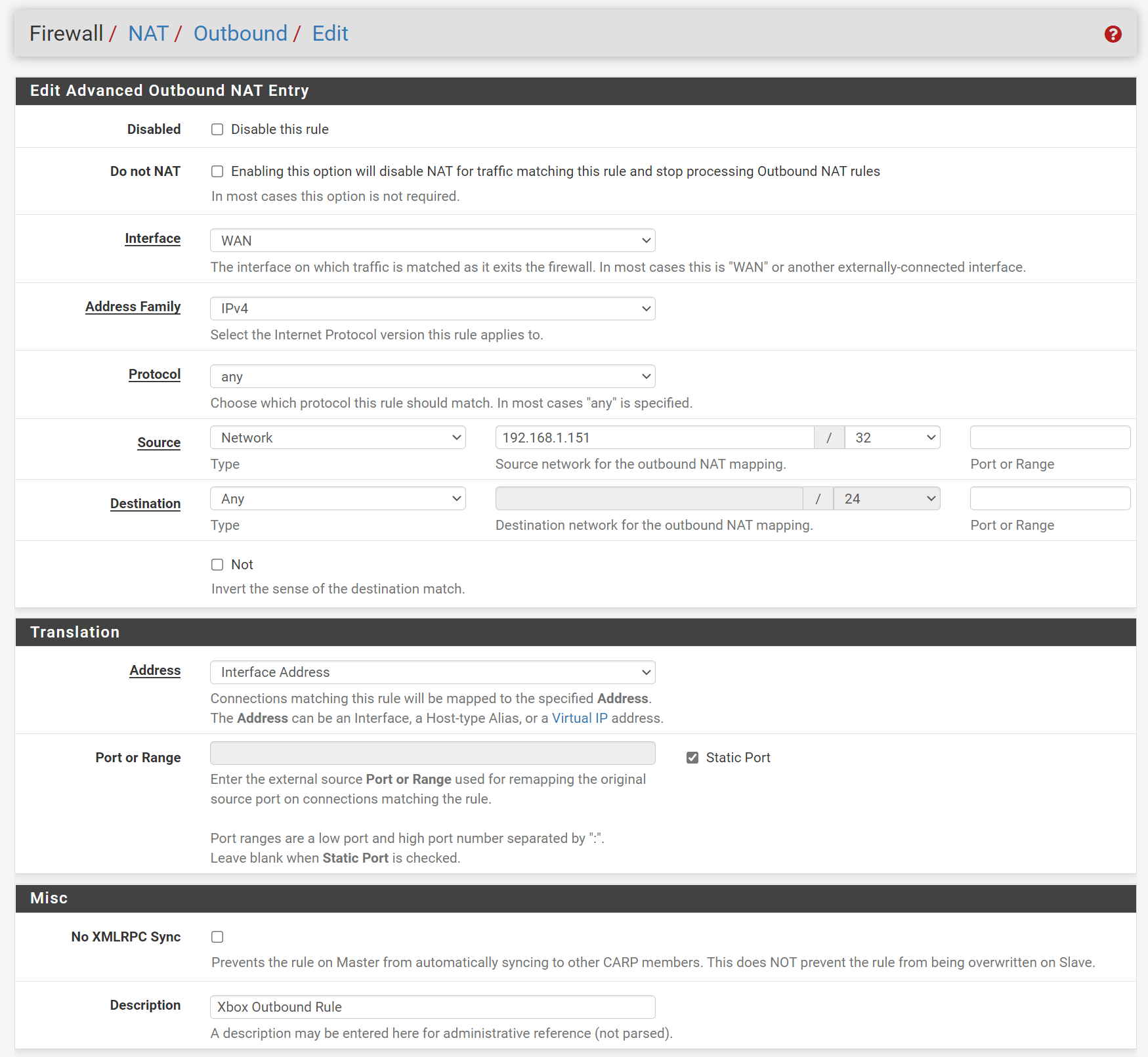

Static Port Rule

  • Click Save, then Apply Changes if prompted

You can also achieve this with 1:1 NAT, but it adds unnecessary exposure and traffic.

Enable automatic port opening (UPnP)

pfSense's built-in miniupnp refuses to work when the WAN IP is private (common in China). Use this workaround:

  • Go to Services > UPnP & NAT-PMP
  • Configure UPnP & NAT-PMP Settings as shown, and set Override WAN address to any public IP

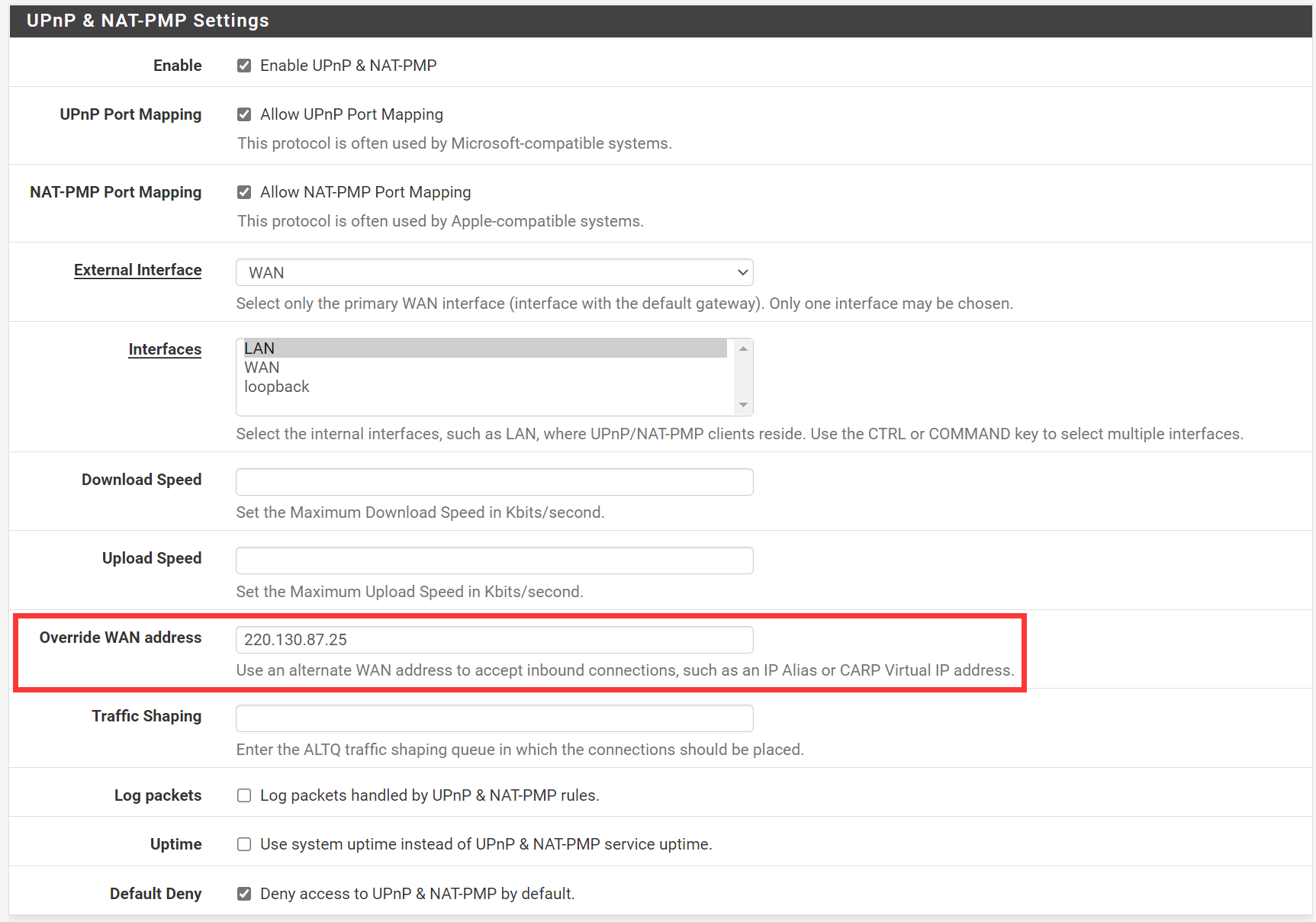

UPnP Settings

  • Do not enable STUN
  • In UPnP Access Control Lists, set ACL Entries to:
allow 1024-65535 192.168.1.151/32 1024-65535

Replace 192.168.1.151 with your Xbox IP.

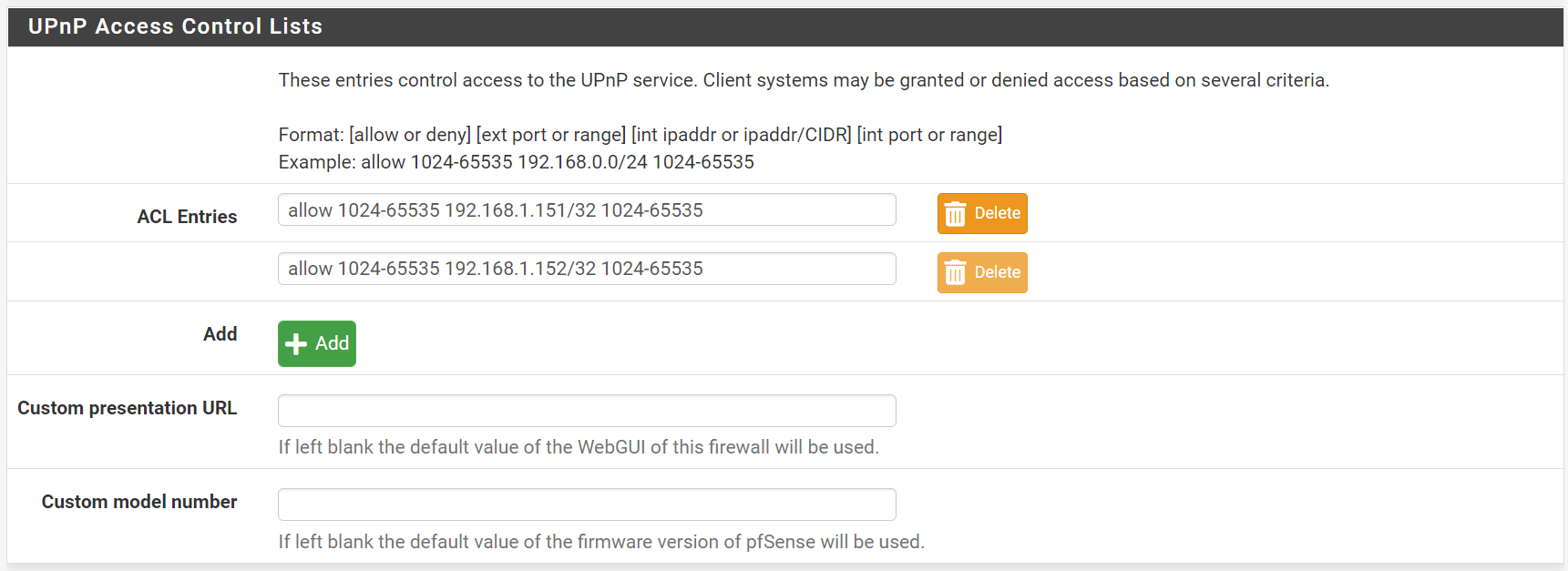

UPnP ACL

  • Click Save, then Apply Changes if prompted
  • Run NAT test on Xbox, then check Status > UPnP & NAT-PMP on pfSense to confirm mappings

This essentially tricks miniupnp to think you have a public IP. In practice it does switch Xbox to Open NAT, but it will also return the fake IP to clients, and the impact is unclear.
